Outdoor Radial Waves Open Lighting Units - Large Size - 14.1"/14.3"/369 - 396/417 - 432/454

ISLANDS and AREAS of LIGHT - Infrastructure Development
Electricity - Electric Lighting

A lighting unit for Light Communities outdoor environment 'esoteric' and general lighting,

where the light source has to be unshielded, 'at sight'...

Recommended mounting height: 7...12m / 23...40ft

Suitable lampholder: E(X)39/E40

 Depiction of the lighting unit with an ED28/ED90

'open rated' HID lamp

Outline of assembly side view with dimensional details

for further 'blue printing' of each component

- Size '14.1"/369' - Schumann's / Tesla's frequency numbers -
(dimensions are in mm.)

- Size '396/417/432' - Sound frequency numbers -

(dimensions are in mm.)

Key of main dimensions related

to the nominal size - overall dia.

(medium and large size only)

---

Outdoor Radial-waves Bell-style Open Lighting Unit - Large size - 14.1"/369

Particulars and Draft Blue-prints, Dimensional Details

Assembly Side-view

Dimensional details

Head cup-shield - dimensional details

Bell-shield - dimensional details

Dished-plate-shield - dimensional details

Internal assembling frame - dimensional details

Open Lampshades - dimensional details

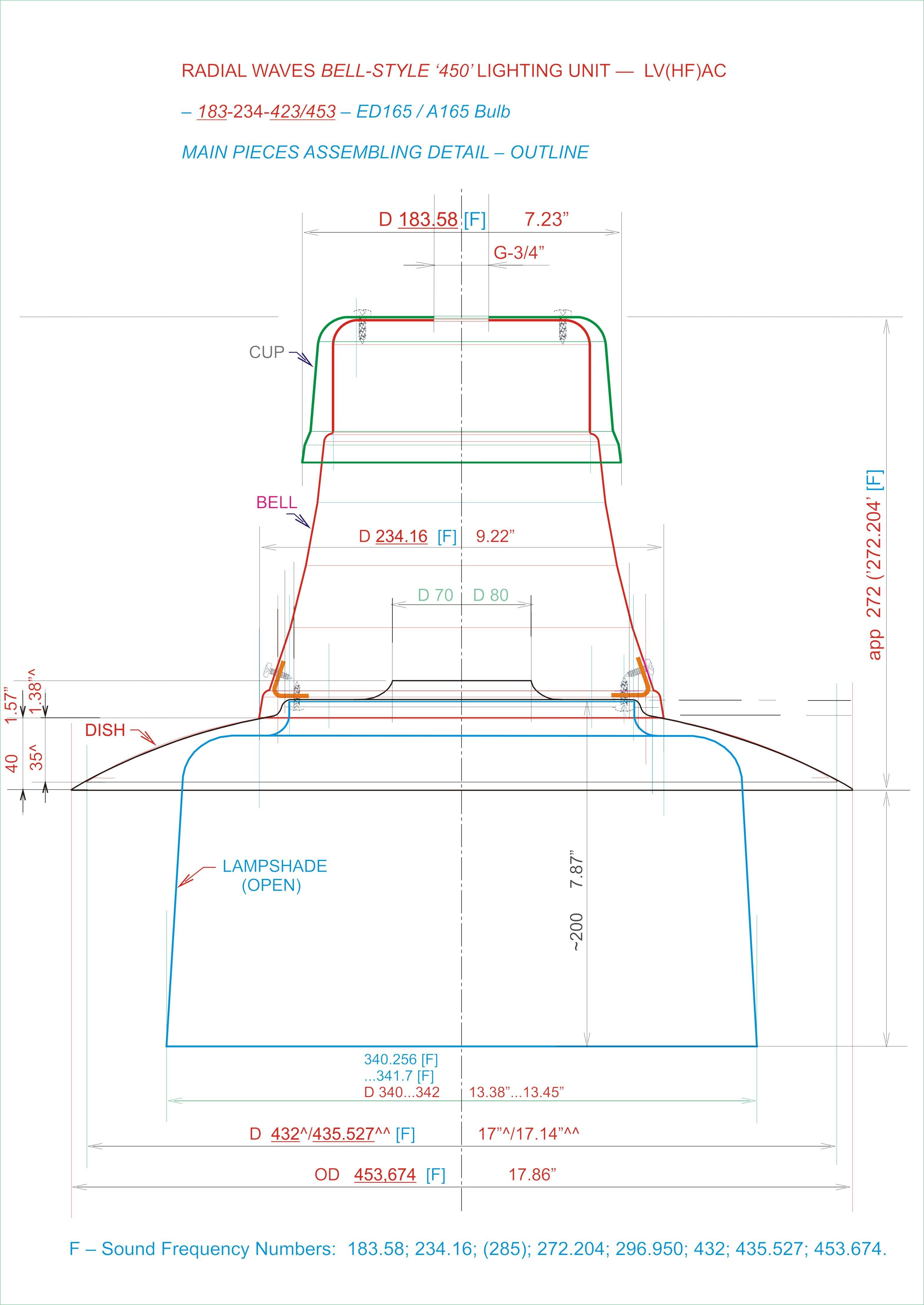

Assembling outline - main pieces only

  1 - Upper image - Saucer for lampholder

2 - Lower image - Dish for lensed LED

More details to come...

---

Outdoor Radial-waves Bell-style Open Lighting Unit - Large size - 396/417

Particulars and Draft Blue-prints, Dimensional Details

Assembling outline - main pieces only

More details to come...

---

Outdoor Radial-waves Bell-style Open Lighting Unit - Large size - 432/454

Particulars and Draft Blue-prints, Dimensional Details

More details to come...

---
