AREAS of LIGHT – Infrastructure Development – Electricity
Outdoor Post-top Lighting Unit - Large Size - <23"> Entertainingly Shaped
A lighting unit for Light Communities outdoor environment 'esoteric' and decorative lighting,
The light source (one or more) and other devices are shielded together inside the lampshade.
Assembly Side View
- Maximal bulb power 1000W, rated lumen output 100000lm.
- Pole size: top end spigot/tenon dia.: 76mm/3in.;
recommended height (up to spigot): 2.40...3.60m/8...12ft.
Details and 'blue prints' are given for main components.

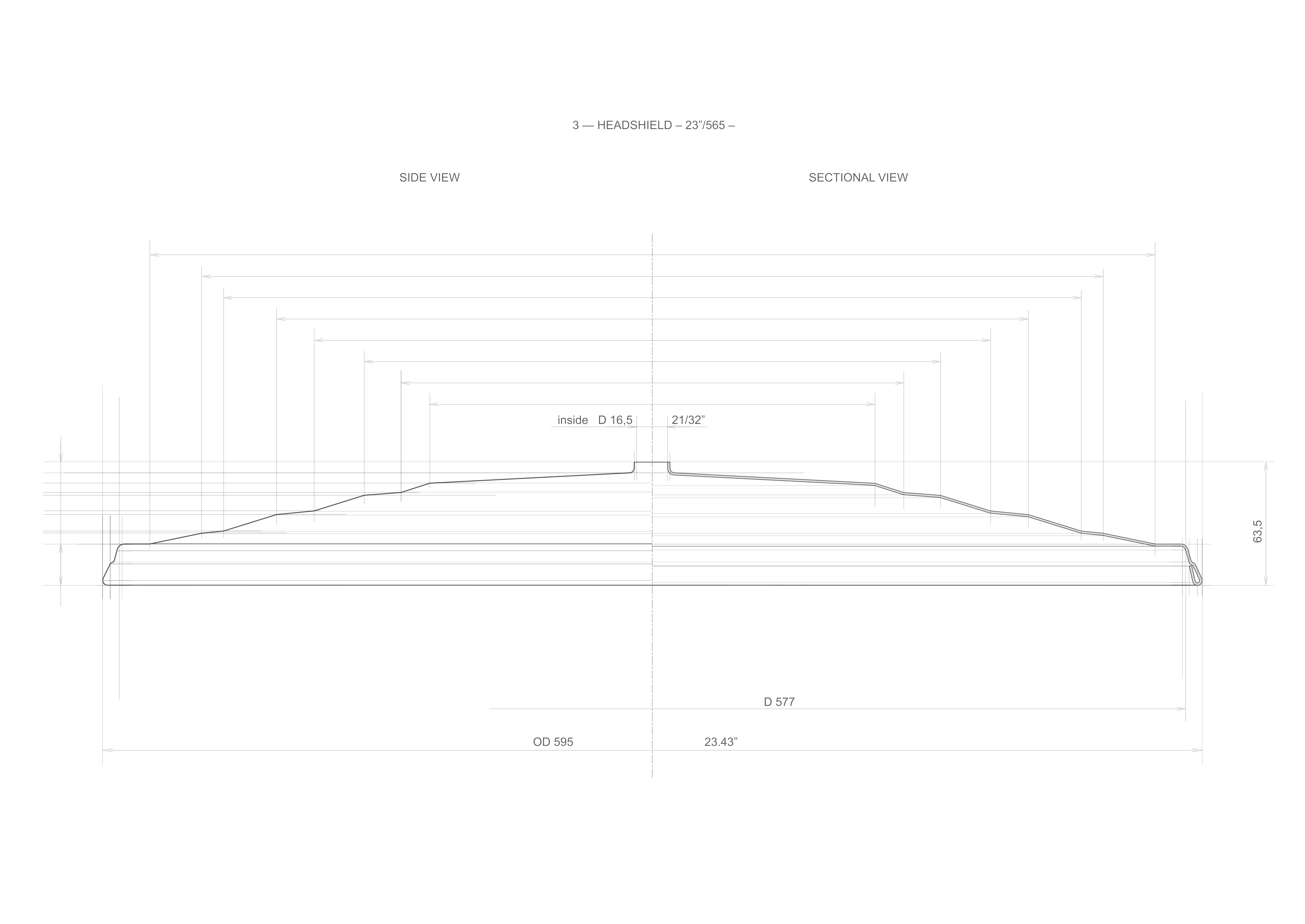

Headshield - Dimensional Details
Lampshade (Ice-cream Glass)
– Appearance –
Lampshade 327-fit – Dimensional Details
Lampshade Fitters 327 - Dimensional Details
Lampshade 285-fit – Dimensional Details
Lampshade Fitters 285 - Dimensional Details
Post-top (Pole/Lampshade) Fitter 285
– Dimensional Details –
some more content might come...
