Outdoor Post-top Lighting Unit - Medium Size - <14.1/14.3">

A lighting unit for Light Communities outdoor environment 'esoteric' and general lighting,
where the light source and other devices have to be shielded together inside the lampshade.


Assembly - Side and Sectional Outline



- Maximal power of lamp (HID) 250W, rated lumen output 20000lm.
- Lampshade size, app.: height: 700mm/27in; top dia.: 350mm/14in; base dia.: 260mm/10in.
- Pole size: top end spigot/tenon dia.: 60mm/2-3/8in., 54mm/2-1/8in;
recommended height (up to spigot):  3.00...3.60m/10...12ft.

Details and 'blue prints' are given for  main components.



1- Post-top Fitters

      1.1 - Pole-Fitters: https://lightcommunitylighting.blogspot.com/p/blog-page_26.html

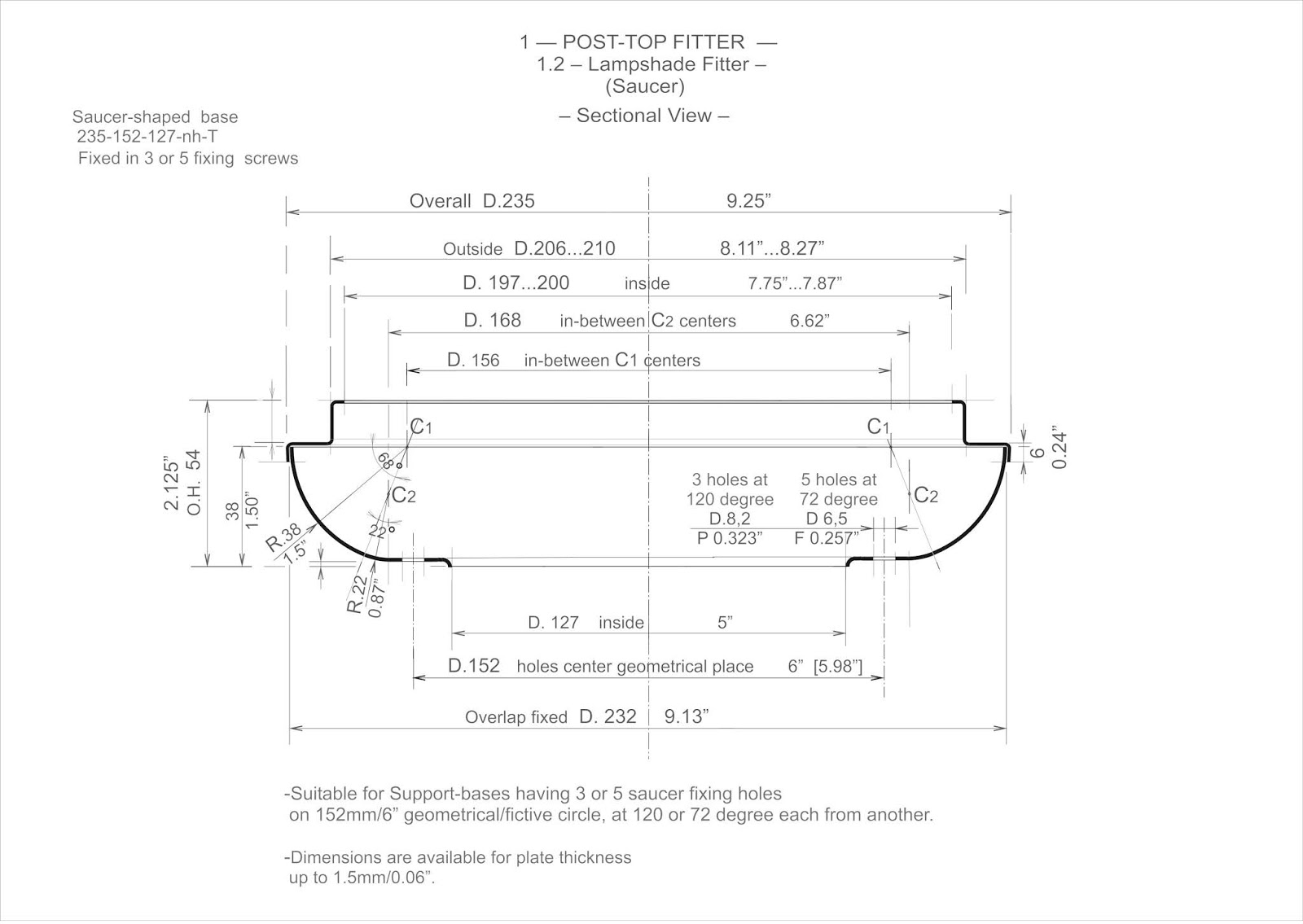

     1.2 - Lampshade-Fitters -
Type-1; Type-2
Lampshade-Fitter 152


Type-3 Lampshade-Fitter 152



Type-1; Type-2
Lampshade Fitter 140
Type-3
Lampshade-Fitter 140



2 - Lampshades -
Tall Lampshade - Outline

Short Lampshade - Outline
Tall Lampshades - Dimensional Details
Short Lampshades - Dimensional Details


3 - Headshields -

Headshields Dimensional Details


4 - Rods -
Rods  Dimensional Details


5 - Head Disks -


 Head Disk  Dimensional Details


 6 - Bolt and Head Details -
Bolt and Gasket Dimensional Details
Assembling Detail


7 - Head Nuts -
Head Nuts Dimensional Details

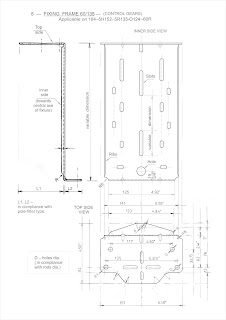

8 - Fixing Frames -
Applicable on <Pole-fitter  S184-3H152-3R135-O124-60 – 3 rods>

Applicable on <Pole-fitter 184-5H152-5R135-O124-60R – 5 rods>

Applicable on <Pole-fitter 178-5H152-6R135-O124-60 – 6 rods>

Applicable on <Pole-fitter 165-6H140-3R130-O114-60(R) – 3 rods>

Applicable on <Pole-fitter S162-3H140-3R124-O114-54(R) – 3 rods>
9 - Lampholder Fitting -
