Pieces of blue prints with dimensional details of 'electric lighting construction sets' are in place, in the form of some miniature - 'Outdoor Post-top Miniature Lighting Fixtures' -
Assembly Sectional View
7" - 184/180/178
6" - 155/152/150
5" - 130/127/125
4.11" - 105/102/100
3.5" - 90/87/85
- Voltage: 12V; 24V DC (ripple-free).
- Only insulated lampholders required.
Pieces and assembly components are roughly similar to that of the large size outdoor post-top lighting unit: http://lightcommunitylighting.blogspot.com/2018/01/blog-post_22.html
Miniature Post-top Outdoor Lighting Unit - 183.58/7"
Assembly Side View
- Maximal bulb size: 12in (305mm) lighting tubes.
- Lampshade maximal size, app.: top dia.: 180mm/7in; height: 350mm/14in; base dia.: 200mm/8in.
- Recommended mounting height (at top of light unit): 2.40...3.30m/8...11ft.
1 - SPECIAL POST-TOP FITTER
4 - Rods
5 - Head Joint Disk
5 - Head Joint Disk
6 - Bolt (Stud)
2 - Lampshades
2.1 - Lampshades for no gasket
2.2 - Lampshades for gasket
3 - Top Shield
On Left: For Lampshade with No Gasket On Right: for Lampshade with Gasket
Assembly Side View
1 - Special Post-top Fitter
4 - Rods
5 - Head Joint Disk
5 - Head Joint Disk
6 - Bolt (Stud)
2 - Lampshades:
3 - Top-shield
Miniature Post-top Outdoor Lighting Unit - 126.22/128-5"
Assembly Side View
1 - Special Post-top Fitter
4 - Rods
5 - Head Joint Disk
6 - Bolt (Stud)
2 - Lampshades
2.1 - Conical-frustum shaped lampshade:

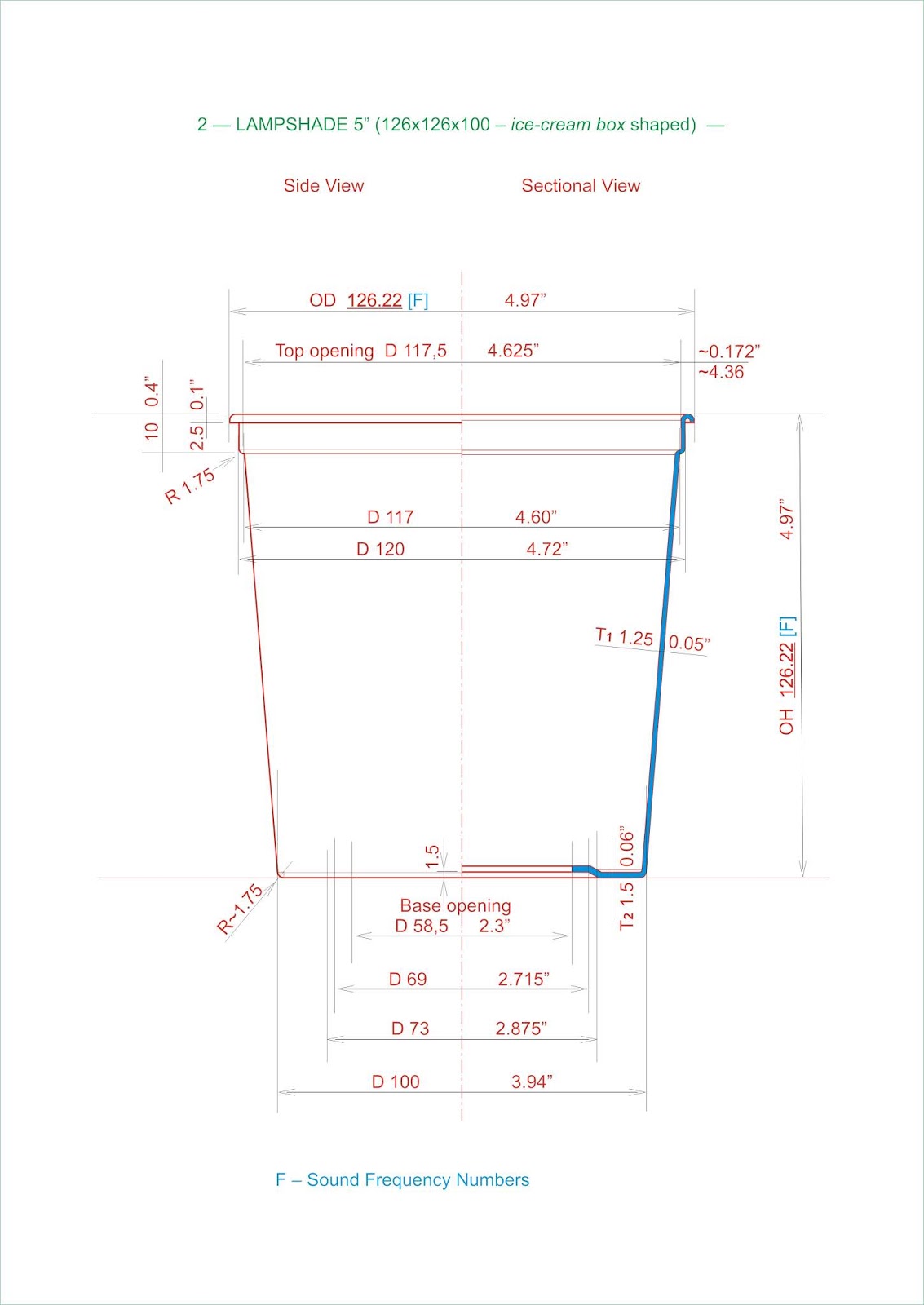

2.2 - Ice-cream box shaped lampshade
3 - Top Shield
On Left: For Lampshade without Gasket On Right: for Lampshade with Gasket
Miniature Post-top Outdoor Lighting Unit - 102,1/4.11"
Assembly Side View
1 - Special Post-top Fitter
4 - Rods
5 - Head Joint Disk
6 - Bolt
2 - Lampshades
2.1 - Regular 4.11" lampshade:
Requires the 5" head-shield (from the 5" post-top unit)
3 - Top-shield
On Left: For 4.11" Lampshade On Right: for 5" Lampshade

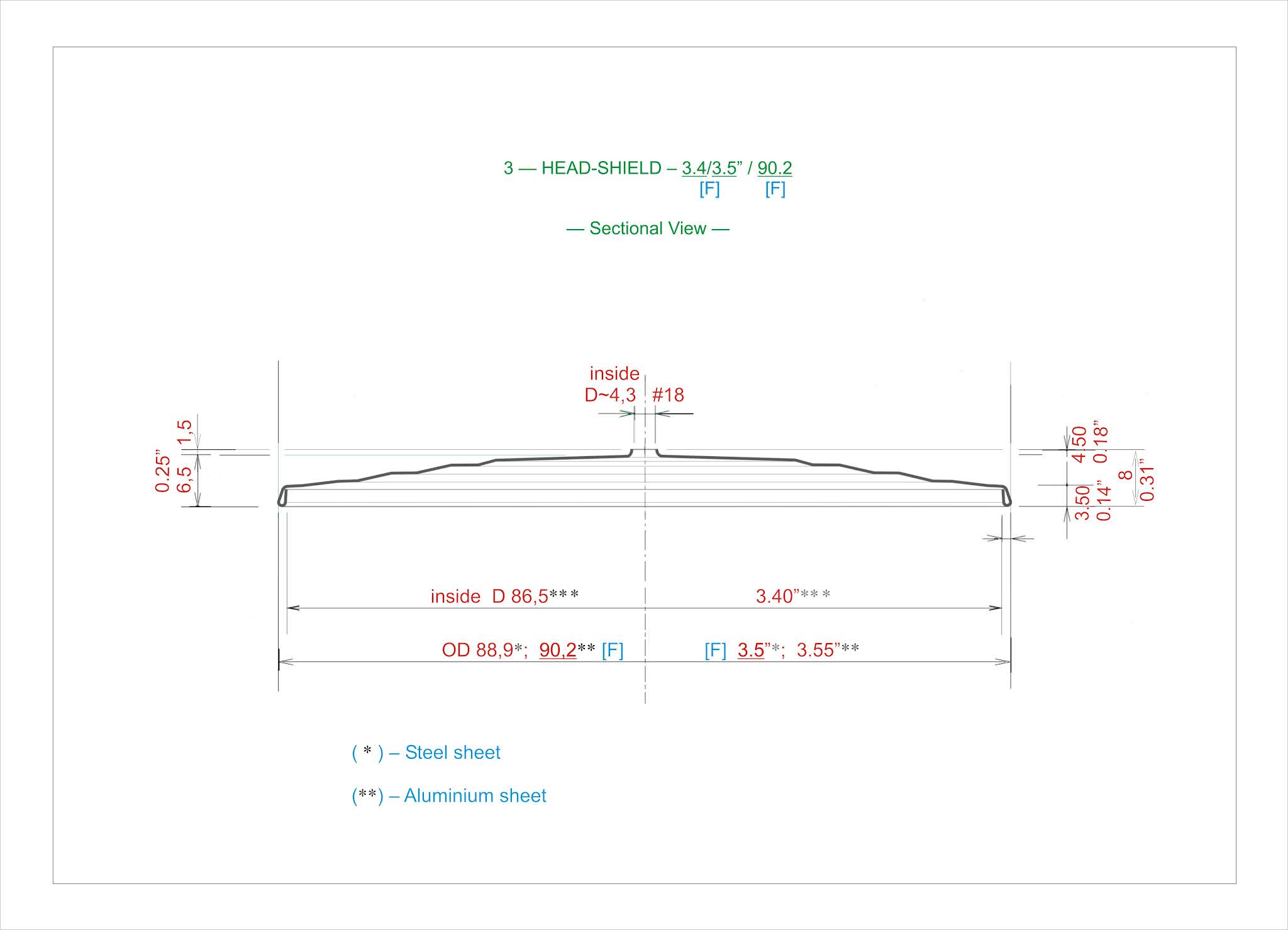

Miniature Post-top Outdoor Lighting Fixtures - 90,2/3.5"
Assembly Side View
1 - Special Post-top Fitter
4 - Rods
5 - Head Joint Disk
6 - Bolt
2 - Lampshade
Cosmic Octave: Table of Planets, Sounds, Colors and Meters:
https://www.planetware.de/octave/table.html
https://www.planetware.de/octave/chakras.html
3 - Top-shield
NOTICE!
1 - E10 and E14 lampholders may be used for only 12 to 24V DC lamps!
It's forbidden (strictly not allowed) to use higher voltage for the units presented in this page!
1 - E10 and E14 lampholders may be used for only 12 to 24V DC lamps!
It's forbidden (strictly not allowed) to use higher voltage for the units presented in this page!
2 - In case of use of automotive bulbs, only insulated lampholders should be used.
Insulated BA9s and BA15s lampholders dimensional details will be available on this blog:
